AIR & GAS PUMPS

Air Pressure Pumps & Air Vacuum Pumps
Gas Pressure Pumps & Gas Vacuum Pumps

Binaca Pumps carries a full line of small, reliable OEM air & gas pumps. These types of pumps are also referred to as air diaphragm pumps and gas diaphragm pumps. We provide long lasting pumps designed for many different industry applications. Our pumps have been tested in the real world and can last anywhere from 10,000 hours to 25,000 hours depending on the model chosen and the application. Most pumps are available with AC or DC motors, but you have the option to customize our air & gas pumps based on your specific requirements.

Contact our office today at 951-296-3397 to learn more about which pump is best for your next project.

Air & Gas Pumps - BP Small Diaphragm Pumps

Small Diaphragm Pumps (BP Series)

BP Series: Small Pressure Pumps and Small Vacuum Pumps

The BP Series pumps are AC or DC voltage pumps designed to handle air & gas. These small pressure pumps and small vacuum pumps are designed to run continuously and provide very long life – 50,000 or higher in many applications. Our proprietary design rubber mounts are very effective in reducing vibration and noise.

Max Flow: 3.0 – 4.5 L/min
Pressure: 0-10 PSI
Vacuum: 0-15 inHG

Learn More: BP Series

Miniature Diaphragm Pumps (CX Series)

CX Series: Miniature Pressure Pumps and Miniature Vacuum Pumps

The CX series pumps are DC motor driven pumps designed for air & gas. The ability to deliver powerful, quiet performance in a compact size makes these small air pumps suitable for many medical device/diagnostic, analytical and gas sampling applications. These small pressure pumps and small vacuum pumps are offered in a wide variety of configurations and types of motors. High efficiency brushless motors can last up to 3,000 hours.

Max Flow: 1.0 – 5.0 L/min
Pressure: 0-25 PSI
Vacuum: 0-22 inHG

Learn More: CX Series
Air & Gas Pumps - GX Small Diaphragm Pumps

Vacuum Diaphragm Pumps (GX Series)

GX Series: Small Pressure Pumps and Small Vacuum Pumps

The GX series pumps are DC motor driven pumps. These high performance pumps can be customized with standard, brushless or DC brushless motor with controller. Due to their size, weight and low energy consumption, these micro air pumps are especially suited for portable & self-contained devices. These maintenance-free small gas pumps feature high gas tightness, low pulsation and can be installed in any position.

Max Flow: 3.0 – 17.0 L/min
Pressure: 0-17 PSI
Vacuum: 0-24 inHG

Learn More: GX Series

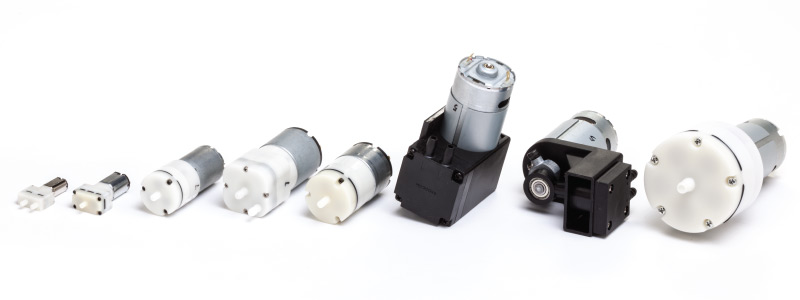

Micro Diaphragm Pumps (SX Series)

SX Series: Micro Pressure Pumps and Micro Vacuum Pumps

The SX series pumps are DC brush motors for air & gas. The compact size and low cost offers an economical alternative for applications requiring only short runs. These micro air pumps are available in different voltage per our customer’s requirements.

Max Flow: 0.4 – 15.0 L/min
Pressure: 0-12 PSI
Vacuum: 0-15 inHG

Learn More: SX Series
