OEM PERISTALTIC PUMPS

PP-101 Series

These miniature Peristaltic Pumps are compact and suitable for a variety of instruments where accuracy is very important. Flow rate ranges from 0.0024 mL/min – 190 mL/min. Dual channel or multi-heads options are available with these small Peristaltic Pumps.

Typical OEM applications include Condensation Discharge and Chemical/Analytical Instruments. Accepts continuous tubing to prevent any cross contamination.

Suitable for OEM applications

Flow rate from 0.0024 – 190 mL/min

Speed range from 0.1 – 300 rpm

Complete range of drives: Stepper motor, DC motor, Brushless DC motor & AC motor

Available complete with Controller for Stepper motor for high precision & easy use

Compact design & low noise pumps ideal for applications with limited space available

Rugged construction for industrial applications

Chemical Transfer Waste Water Treatment
Food and Beverage Dispensing Pigments and Color Dispensing
Analytical Instrument Sampling Condensation Removal
DOWNLOAD PP-101 – TECHNICAL DATA SHEET
PP-101: Speed/Flow Rate Reference (Single)
Rotation Speed (rpm) Single Channel Flow Rate (mL/min) and Tubing (1.6mm wall thickness)
#13 Tubing ID 0.8mm #14 Tubing ID 1.6mm #16 Tubing ID 3.1mm #25 Tubing ID 4.8mm
5 0.12 0.56 1.97 3.26
10 0.26 1.15 3.90 6.41
15 0.39 1.74 5.80 9.52
25 0.66 2.88 9.59 15.74
40 1.08 4.59 15.29 25.15
50 1.34 5.69 18.96 31.14
75 2.00 8.54 28.36 46.55
100 2.73 11.37 37.66 61.98
200 5.46 22.76 76.02 124.14
250 6.81 28.40 95.08 153.63
300 8.28 33.88 114.31 190.00
PP-101: Speed/Flow Rate Reference (Dual)
Rotation Speed (rpm) Dual Channel Flow Rate (mL/min) and Tubing (1mm wall thickness)
ID 1mm ID 2mm ID 2.5mm ID 3mm
5 0.25 0.90 1.28 1.78
10 0.49 1.84 2.59 3.52
15 0.74 2.76 3.85 5.30
25 1.25 4.57 6.43 8.80
40 2.00 7.31 10.25 14.02
50 2.52 9.14 12.78 17.47
75 3.76 13.64 19.04 26.12
100 5.03 18.17 25.42 35.34
200 10.12 36.45 51.27 71.44
250 12.63 45.75 64.34 88.35
300 15.01 54.63 76.84 108.39

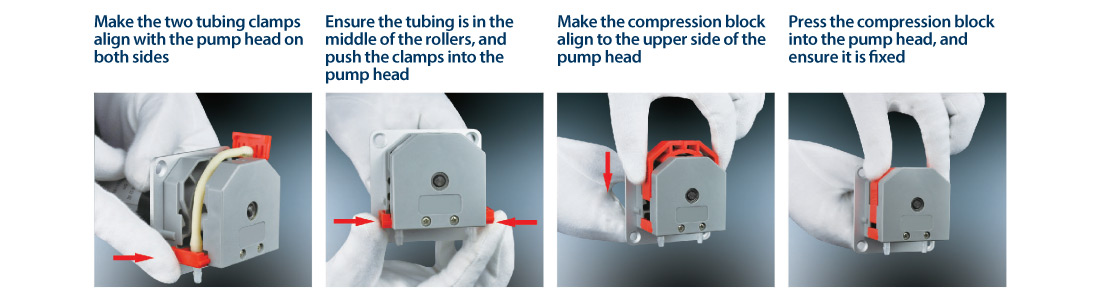

Tubing Installation Procedure

PP-101-Tubing-Installation-Graphic
